From Recipe to Ready Product: Laboratory UHT Sterilizer & Aseptic Filling Machine

From Recipe to Ready Product: Laboratory UHT Sterilizer & Aseptic Filling Machine

Lab-Scale Sterile Processing Equipment | Ruiyuan Machinery

Bring full-scale sterile production performance into your R&D lab. Our compact pilot line — a precision UHT sterilizer paired with a glove-box aseptic filling machine — lets you validate formulations, run small-batch trials and scale up with confidence.

Stainless Steel Construction  •  Touchscreen HMI  •  HEPA-Protected Filling Zone  •  OEM / Custom Capacity Available

Key Process Data

PRODUCT 01

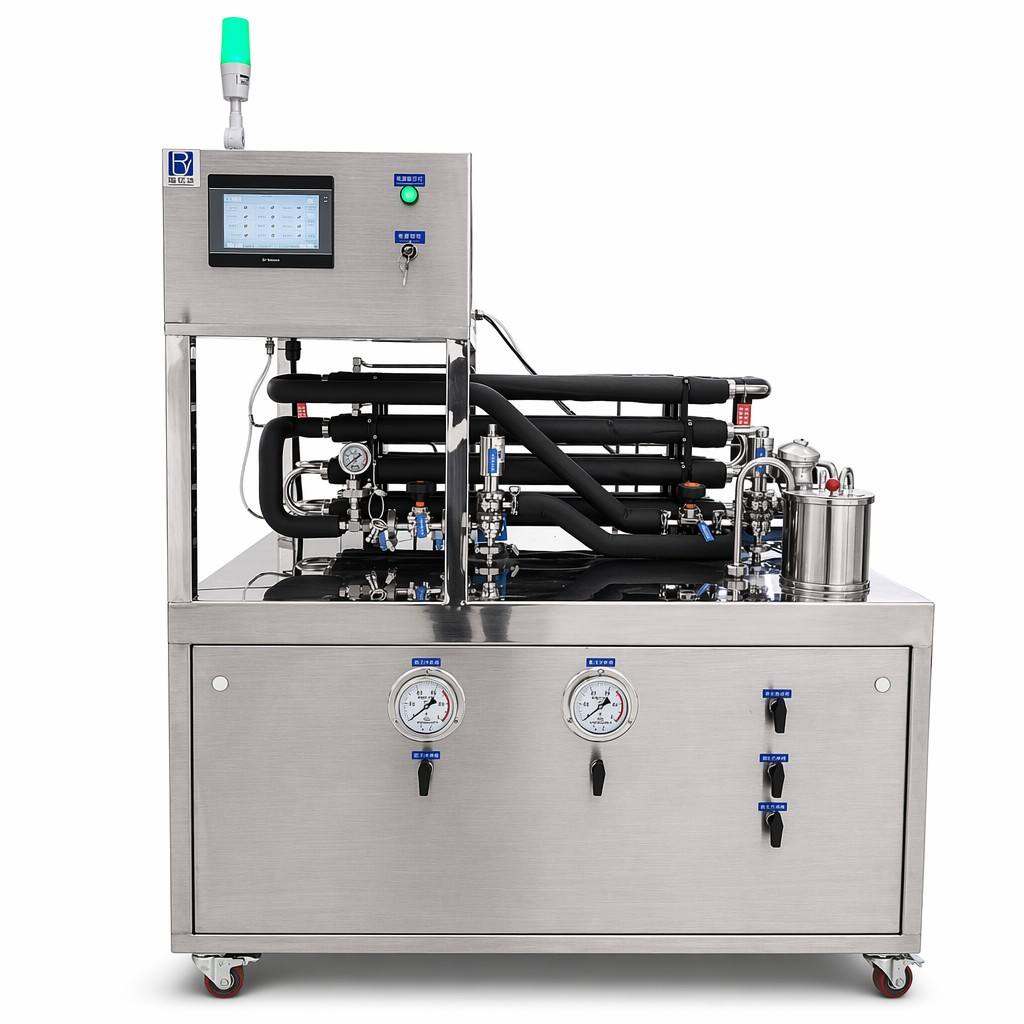

Laboratory Ultra-High-Temperature Sterilizer

MODEL: RY-UHT-LAB SERIES

A compact, fully mobile sterilizer that replicates industrial UHT conditions in a bench-friendly footprint. Continuous indirect heating delivers precise, repeatable thermal treatment so every pilot batch matches the quality of your future production line.

• Touchscreen HMI with real-time temperature & pressure monitoring
• Indirect heating via insulated heat-exchanger piping
• Preheat → sterilize → hold → rapid cool in one continuous pass
• Food-grade stainless steel (304 / 316L) construction
• Analog gauges + manual valves for flexible process control
• Locking casters — move it between lab and pilot plant
• PLC data logging for batch traceability (optional)
• Customizable capacity, heating profile & CIP/SIP (OEM)

PRODUCT 02

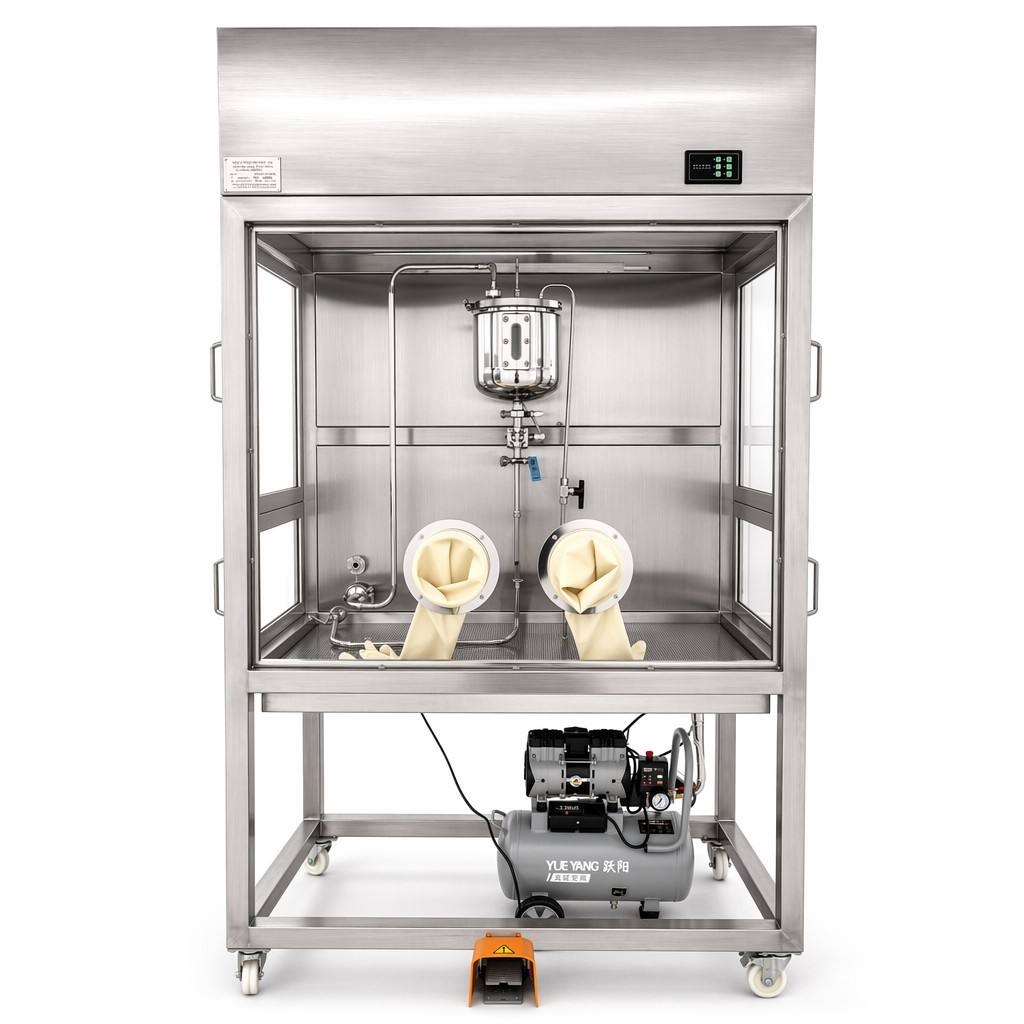

Laboratory Aseptic Filling Machine

MODEL: RY-AF-LAB SERIES

A self-contained aseptic workstation that closes the loop between sterilization and packaging. Operators work through glove ports inside a HEPA-protected chamber, so the filled product never meets ambient air — from the last milliliter to the final seal.

• Glove-box isolation chamber — no break in sterility
• HEPA/ULPA-filtered laminar airflow inside the filling zone
• Stainless steel reservoir with sight glass level monitoring
• Foot-pedal actuation keeps both hands on the container
• Adjustable filling volume for bottles, pouches & sample vials
• Fully mobile cabinet with casters, easy to clean
• Pairs directly with our UHT sterilizer as a complete line
• Custom chamber size & filling configurations (OEM)

One Continuous Sterile Process

From raw liquid to sealed, shelf-stable package — the sterilizer and aseptic filler work as one integrated line, eliminating manual transfer risk and reproducing production-scale conditions.

01 — Preheating & Deaeration

Product is preheated and prepared under controlled conditions before thermal treatment. (60–85 °C)

02 — UHT Sterilization

Indirect heat exchange raises the product to ultra-high temperature for a short hold time, destroying spoilage microorganisms. (135–142 °C)

03 — Rapid Cooling

Product is cooled within seconds, preserving flavor, color and nutritional value. (< 5 s to fill)

04 — Aseptic Filling & Sealing

Cooled sterile product is filled inside the HEPA-protected glove box and sealed without exposure to ambient air. (Sterile zone)

Specifications at a Glance

Standard configurations shown below — every parameter can be tailored to your product, capacity and facility requirements.

Note: Specifications are reference values for standard configurations. Contact us with your target product, viscosity and capacity — our engineers will provide a tailored technical proposal.

Built for Any Liquid Product You Need to Validate

From dairy to plant-based and beyond — the same pilot line supports product development, shelf-life studies, small-batch production and process scale-up.

• Milk & Dairy Drinks
• Plant-Based Milk (Oat / Soy / Almond)
• Fruit & Vegetable Juices
• Tea & Coffee Beverages
• Yogurt Drinks & Liquid Yogurt
• Sauces & Liquid Soups
• Nutraceutical Liquids
• Cosmetic & Pharma Samples

Why Choose Ruiyuan

OEM / Custom Engineering

Capacity, heating profiles, chamber design and control options are configured around your product — not the other way around.

Complete Line Integration

Sterilizer and aseptic filler are engineered to work together as one seamless sterile process, with unified controls and connections.

Quality-Grade Materials

Food-grade stainless steel and precision components throughout, built to withstand repeated sterilization and daily lab use.

Responsive After-Sales Support

Documentation, commissioning guidance and spare-part support from a manufacturer that stands behind every pilot line.

Ready to Build Your Lab Sterile Line?

Tell us your product, target capacity and packaging — we will prepare a tailored proposal for your UHT sterilizer and aseptic filling machine.

Email: [email protected]   |    Web: www.ruiyuanmachinery.com    |    OEM / ODM Inquiries Welcome
