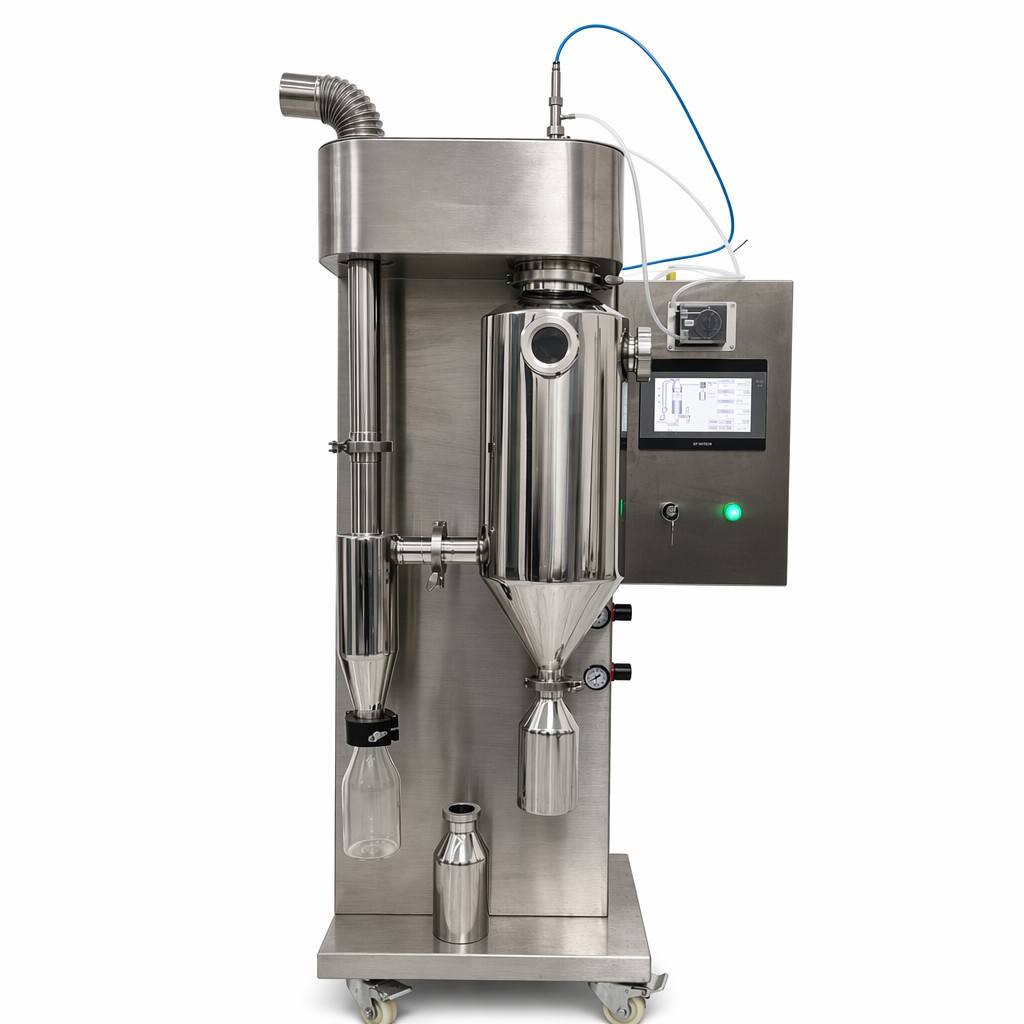

Lab Spray Dryer

Laboratory Spray Dryer — Key Features

  1. Large color touch screen operation, combining fully automatic and manual control. Chinese and English panel with LCD parameter display.

  2. Real-time PID constant temperature control technology with accurate heating, control accuracy ±1°C.

  3. Spray, drying and collection devices made of transparent high-temperature resistant borosilicate glass, enabling full visual monitoring of the spray drying process.

  4. Two-fluid spray atomization structure manufactured from high-precision stainless steel. Powder particle size follows normal distribution with good flowability.

  5. Automatic nozzle cleaning (needle) with adjustable frequency. When the nozzle becomes clogged, auto-clearing ensures continuous operation.

  6. Feed rate adjustable via peristaltic pump, minimum sample volume requirement of only 30 mL.

  7. Built-in safety interlock: heater cannot start unless the blower is running.

  8. Built-in imported oil-free air compressor, noise level below 50 dB.

  9. Equipped with air intake filter to ensure sample purity.

  10. Dried product features uniform particle size, with over 95% of dry powder within the same particle size range.

  11. Optional spray head water cooling device to meet heat-sensitive material drying requirements.

  12. Optional nitrogen circulation system for organic solvent drying processes.

Laboratory Spray Dryer — Technical Specifications
