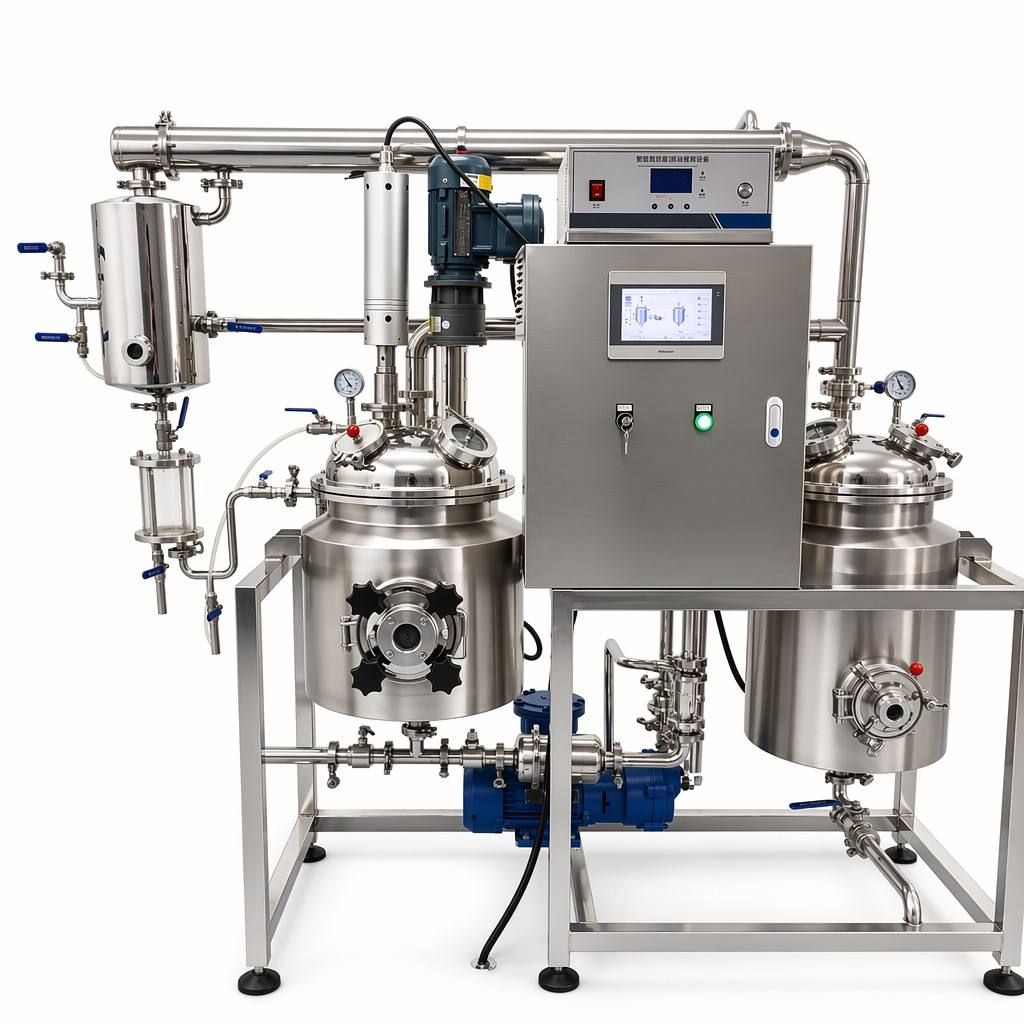

Ultrasonic Extraction System

Ultrasonic Extraction & Concentration Unit — Concise Intro

I. Equipment Overview

An integrated system combining ultrasonic extraction, multi-stage filtration, vacuum concentration, oil-water separation, and solvent recovery. It utilizes ultrasonic cavitation to disrupt plant cell walls for high-efficiency extraction at low temperatures. Designed for large-scale continuous production of Traditional Chinese Medicine (TCM), botanicals, supplements, and essential oils.

II. Core Features & Components

  1. Ultrasonic Extraction Tank: SUS304/316L mirror stainless steel with immersive transducers. Delivers significantly higher active ingredient yield than conventional methods.

  2. Multi-Stage Precision Filtration: Two-stage (coarse/fine) process with replaceable screens to remove residues before concentration, ensuring clarity and preventing scorching.

  3. Ultrasonic Power System: Independent programmable generator with continuous and pulse modes to protect heat-sensitive ingredients while maximizing extraction.

  4. Vacuum Concentration Unit: Low-temperature negative pressure design (40–85°C) to prevent thermal degradation and achieve precise extract density.

  5. Condensation & Recovery: High-efficiency shell-and-tube condenser for solvent recovery and integrated separator for automatic essential oil collection.

  6. Vacuum Negative Pressure System: Water-ring pump with adjustable vacuum levels for both extraction and concentration processes.

  7. Intelligent PLC Control: Centralized touch screen for digital monitoring of power, temperature, and vacuum with full production data traceability.

  8. Flexible Heating Options: Supports integrated electric thermal oil heating (no boiler required) or steam heating for centralized factory(heat source) configuration.
